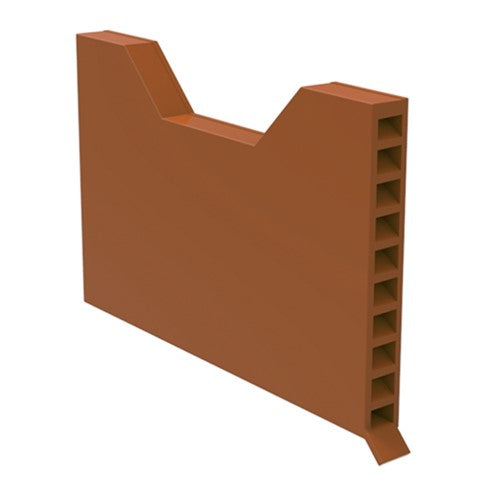

WEEP VENT TERRACOTTA
£11.96
IEPONLINE
50 In Stock
JG-RVWVSTE
Packed: 10 Used to drain lintels, cavity trays and to ventilate cavity walls - provides 220mm² ventilation airflow Can be slotted between two bricks and mortared into position to provide an unobtrusive ventilation point for the cavity behind The vent has a baffled grille to prevent the ingress of driving...
Packed: 10
- Used to drain lintels, cavity trays and to ventilate cavity walls - provides 220mm² ventilation airflow
- Can be slotted between two bricks and mortared into position to provide an unobtrusive ventilation point for the cavity behind
- The vent has a baffled grille to prevent the ingress of driving rain and wind whilst incorporating an insect grille and drip lip
- This grille is sized to keep out large insects but is wide enough that it will not be blocked by debris, paint or water droplets
- The Weep Vent should be spaced at no greater than 900mm centres to meet N.H.B.C guidelines, which state, €œweep holes are recommended to be sited at every 450mm maximum with at least two per opening above all windows and doors."
- Regulations - BRE Digest 262, BS 5250:2011 Control of Condensation in Building, NHBC Standards 6.2 External timber framed walls and The Building Regulations (Scotland) 3.10.6 Masonry outer leaf
- Size 100mm x 65mm x 9mm
- Also available in buff
