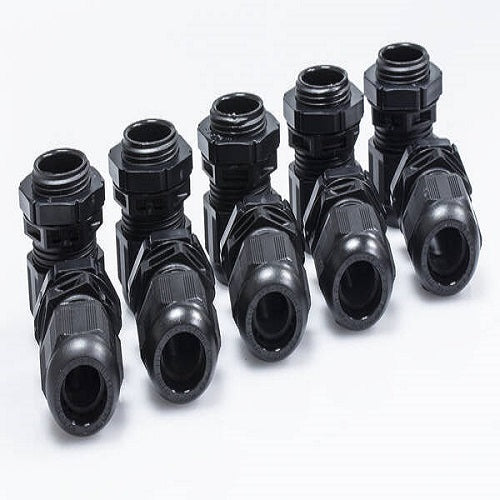

Wiska 20mm IP68 Compression Gland LSF c/w Locknut- Black (10 Pack)
£7.01
Onestop Warehouse UK
50 In Stock
10100612
Product Colour - RAL 9005.Order no. RAL 9005 - 10100612.Type - GLP20+ Black.Pack of 10Protection class: IP69, IP68 (5 bar 30 min). Dimensions Length screw-in thread (L): 10mm. Collar diameter ( E ): 27mm. Total length (TL): 36mm - 45mm. Ø Connection thread ( D ): 20mm. Nut Size ( SW ): 24mm. Ø cable...
Product Colour - RAL 9005.
Order no. RAL 9005 - 10100612.
Type - GLP20+ Black.
Pack of 10
Protection class: IP69, IP68 (5 bar 30 min).
Order no. RAL 9005 - 10100612.
Type - GLP20+ Black.
Pack of 10
Protection class: IP69, IP68 (5 bar 30 min).
- Dimensions
- Length screw-in thread (L): 10mm.
- Collar diameter ( E ): 27mm.
- Total length (TL): 36mm - 45mm.
- Ø Connection thread ( D ): 20mm.
- Nut Size ( SW ): 24mm.
- Ø cable diameter min: 7,5mm.
- Ø cable diameter max: 14mm.
- Material cable gland: Polyamide.
- Material sealing gasket: EPDM.
- Glow wire test: 750°C.
- Type of cable anchorage: A.
- Temp. range min: -40°C.
- Temp. range max: 100°C.
- Install. torques fitting: 4 N m.
- Install. torques cap nut: 3 N m.
